Water column geochemistry data from REVOSIMA MAYOBS4 Cruise
The Mayotte volcanological and seismological monitoring network (REVOSIMA) was created in response to the sub-marine eruption that started in May 2018. Composed by IPGP, BRGM, IFREMER and CNRS, its main missions are:
- 1) to observe and study volcanic phenomena through real-time volcano monitoring,
- 2) to conduct research programs,
- 3) to communicate, disseminate and inform authorities and civil society.
These real-time observations and research can contribute to the prevention, and mitigation of seismic and volcanic risks. The main objective is to collect geological, geophysical and geochemical data over long periods of time to improve the understanding and modeling of volcanic processes at active volcanoes, to allow the systematic elaboration of long-term multi-parameters databases available to the scientific community, and to inform the authorities in charge of civil protection of any change in the volcano activity and after periods of local and regionally felt earthquakes.
The MAYOBS campaigns are carried out to monitor the evolution of the seismic and volcanic phenomenon which has affected the island of Mayotte since May 2018. They are carried out as part of an action program financed by the Ministry of Research, the General Directorate of prevention and risks of the Ministry of Ecological and Inclusive Transition, with the support of the interministerial delegate for major risks overseas and in conjunction with the other ministries and institutes involved (IPGP, IPGS, BRGM, IFREMER). They focus on the region east of Mayotte. The bathymetric surveys carried out by SHOM in the volcano area also contribute to the MAYOBS project.

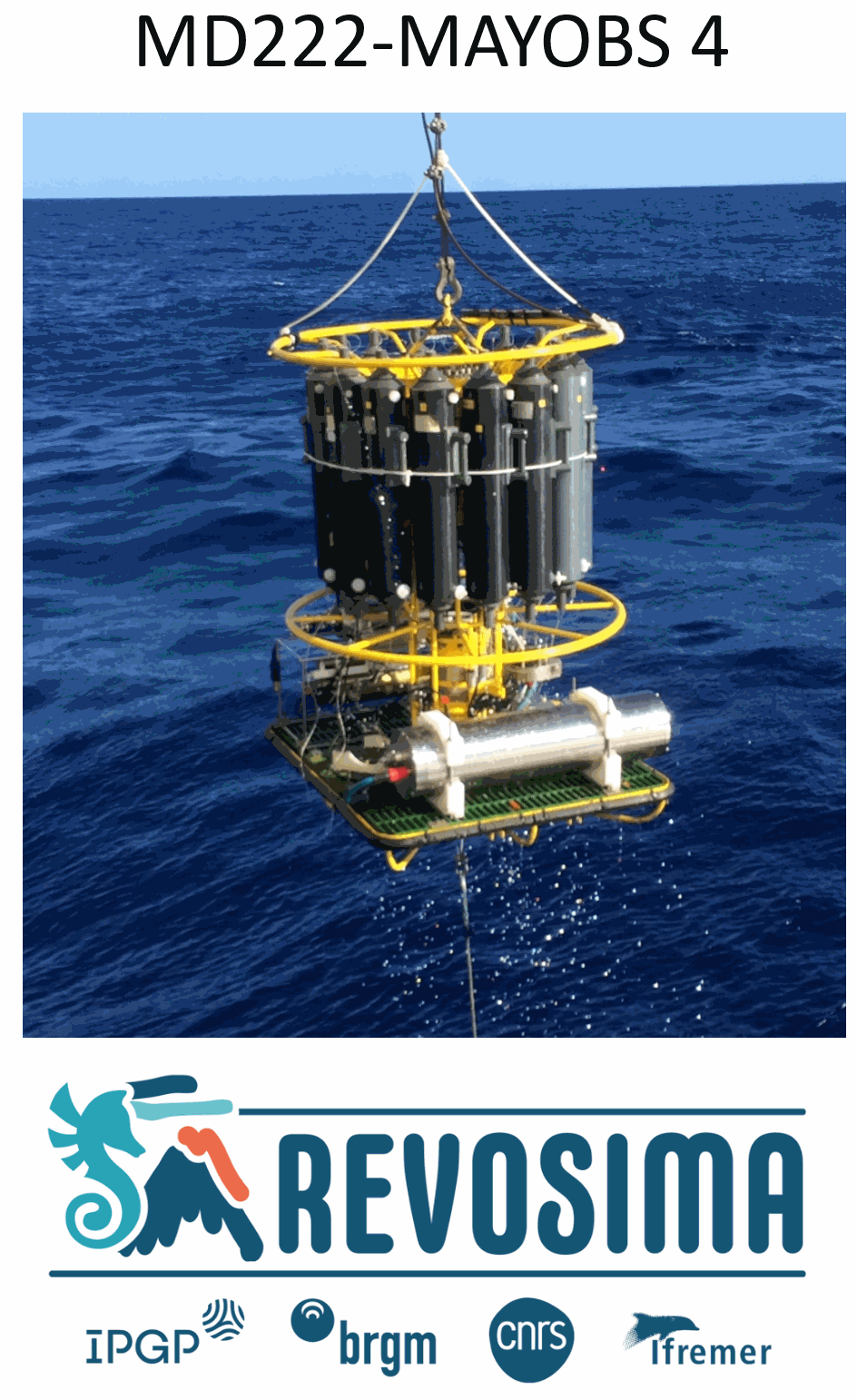

IFREMER carried out water column geochemistry measurements during MD222-MAYOBS4 cruise. In the present database, 10 stations were investigated between the 20th and 30th July 2019 using in situ measurements embedded in a CTD-Rosette. Samples (max. 16 bottles per station) were anaylized onboard and onshore depending on the parameters. The quality controlled and process data are:
- In situ: salinity (conductivity), temperature, depth, dissolved oxygen, turbidity
- Onboard: pH, alkalinity, dissolved inorganic carbon, dissolved CO2 H2
- Onshore: dissolved CH4, silicates, d13C CH4, d13C CO2, He, Ne, 3He, 4He
Disciplines
Physical oceanography, Chemical oceanography, Marine geology
Keywords
water column, geochemistry, Fani Maore, gas analysis, pH, O2, salinity, turbidity, temperature, CH4, CO2, Alkalinity, Silicate, H2, Carbon isotope, Helium isotope, Noble gas, He, Ne
Location
-12.4N, -13.4S, 46.3E, 45.2W
Devices
In situ sensors | Manufacturer | Model | Serial Number | Unit | Resolution |
Deck Unit | Sea-Bird | SBE11Plus | |||
CTD | Sea-Bird | SBE9Plus | |||
Rosette | Sea-Bird | SBE32 | |||
Depth | Sea-Bird | SBE12 | m | 0.1 | |
Temperature | Sea-Bird | SBE3 | 5555 | °C | 0.01 |
Salinity | Sea-Bird | SBE4 | 4031 | psu | 0.01 |
[O2] | Aandera | µmol/kg | 0.01 | ||
Turbidity | NKE | STBD 2.5 | 04 | NTU | 0.01 |
Parameter | Method | Unit | Limit of detection | Resolution | Bibliographic ref |
pH | Glass electrode | 0.01 | |||
Alkalinity | Potentiometric titration Titrino 848 Metrohm | mmol/L | 0.001 | ||
DIC | Potentiometric titration Titrino 848 Metrohm | mmol/L | 0.001 | ||
[CO2] | Head space / GC / HID | µmol/L | 0.05 | 0.1 | (1) |
[H2] | Head space / GC / HID | nmol/L | 1.5 | 1 | (1) |
[CH4] | Purge and trap / GC / FID | nmol/L | 0.03 | 0.1 | (2), (3) |
[Silicates] | FIA Seal Analytical AA3 | µmol/L | 1 | ||
d13C CO2 | Agilent 7890A GC interfaced to a MAT 253 IRMS using a GC-Isolink or a Finigan GC-C III interface from Thermo. GC equipped with 25m, 0.32mm Porabond-Q column (Agilent) and injection valve. Cold trapping used to pre-concentrate sample when necessary. | promille vs. vPDB | 0.1 | Made by: Isolab 1e Tieflaarsestraat 23 4182 PC Neerijnen The Netherlands |
|
d13C CH4 | Agilent 6890N GC interfaced to a Finigan Delta S IRMS using a Finigan GC-C II interface. The GC is equipped with a 12m, 0.32mm molsieve column and an injection valve. | promille vs. vPDB | 0.1 | Made by: Isolab 1e Tieflaarsestraat 23 4182 PC Neerijnen The Netherlands |
|
[He] | Purge&Trap / QMS, SMS | mol/L | 1E-11 | Made by: Helis Helium istopes studies Bremen Institut für Umweltphysik, Abt. Ozeanographie Universität Bremen Otto-Hahn-Allee 1 28359 Bremen Germany |
|
[Ne] | Purge&Trap / QMS, SMS | mol/L | 1E-17 | Made by: Helis Helium istopes studies Bremen Institut für Umweltphysik, Abt. Ozeanographie Universität Bremen Otto-Hahn-Allee 1 28359 Bremen Germany |
|
[3He] | Purge&Trap / SMS | mol/L | 1E-11 | Made by: Helis Helium istopes studies Bremen Institut für Umweltphysik, Abt. Ozeanographie Universität Bremen Otto-Hahn-Allee 1 28359 Bremen Germany |
|
[4He] | Purge&Trap / SMS | mol/L | 1E-11 | Made by: Helis Helium istopes studies Bremen Institut für Umweltphysik, Abt. Ozeanographie Universität Bremen Otto-Hahn-Allee 1 28359 Bremen Germany |
(1) Donval J.-P., Guyader V. (2017). Analysis of hydrogen and methane in seawater by “Headspace” method: Determination at trace level with an automatic headspace sampler. Talanta, 162, 408-414. https://doi.org/10.1016/j.talanta.2016.10.034
(2) Charlou J.-L., Fouquet Y., Bougault H., Donval J.-P., Etoubleau J., Jean-Baptiste P., Dapoigny A., Appriou P., Rona P.A.
Intense CH4 plumes generated by serpentinization of ultramafic rocks at the interaction of the 15°20′N fracture zone and the Mid-Atlantic Ridge. Geo. Cosmo. Act., 62 (1998), 2323-2333
(3) Donval J.-P., Charlou J.-L., Lucas L. Analysis of light hydrocarbons in marine sediments by headspace technique: Optimization using design of experiments. Chemometrics and Intelligent Laboratory Systems, 94 (2008), 89-94
Data
File | Size | Format | Processing | Access | |
---|---|---|---|---|---|
114715.xlsx | 36 Ko | XLS, XLSX | Processed data |
