(2023). COSTOF2, technical data from SeaMoN West, node of the EMSO-Azores observatory, 2020-2021. SEANOE. https://doi.org/10.17882/95037
Copy this text
COSTOF2, technical data from SeaMoN West, node of the EMSO-Azores observatory, 2020-2021

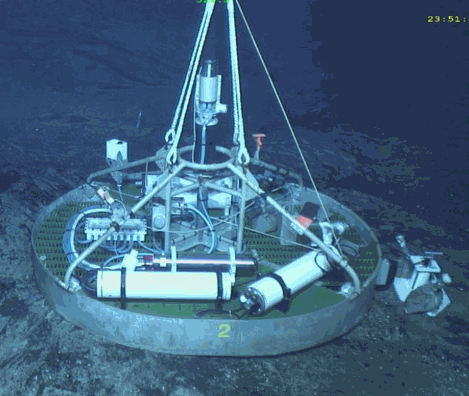

This dataset contains technical parameters (Voltage in V, current in mA, energy in Ah, internal pressure in mbar, water leak detection). This log is done by the COSTOF2 (COmmunication and STOrage Front-end, the Electronic core of SeaMoN West, the bottom station of EMSO-Azores dedicated to geological observations.
Disciplines
Marine geology, Physical oceanography, Cross-discipline, Environment
Keywords
Mid-Atlantic Ridge, EMSO, Lucky Strike, Time-series, Biological monitoring node, MoMAR, SeaMon West, deep sea, COSTOF
Location
37.291N, 37.291S, -32.279E, -32.279W
Devices
Parameters
- Time
- Latitude
- Longitude
- Voltage (V)
- Consumed energy (mAh)
- Water (leak) detection
- Separator : Slot 8
- Slot 8 current (mA)
- Slot 8 internal temperature
- Slot 8 Internal pressure
- Slot 8 SD card free space (bytes)
- Separator : Slot 9
- Slot 9 current (mA)
- Slot 9 internal temperature
- Slot 9 Internal pressure
- Slot 9 SD card free space (bytes)
- Separator : Slot 10
- Slot 10 current (mA)
- Slot 10 internal temperature
- Slot 10 Internal pressure
- Slot 10 SD card free space (bytes)
- Separator : Slot 11
- Slot 11 current (mA)
- Slot 11 internal temperature
- Slot 11 Internal pressure
- Slot 11 SD card free space (bytes)
- Separator : Slot 15
- Slot 15 current (mA)
- Slot 15 internal temperature
- Slot 15 Internal pressure
- Slot 15 SD card free space (bytes)
Location
- Regional node: Emso-Azores
- Site: Lucky Strike
- Node: Seamon West
- Coordinates:37.291N, -32.279E
- Depth: 1700 m
Installation
- Cruise: Pierre Marie Sarradin - Ifremer / REM, Julien Legrand - Ifremer /REM - MOMARSAT2020 cruise, N/O Pourquoi Pas ? https://doi.org/10.17600/18000684
Recovery
- Cruise : Marjolaine Matabos / Josée Sarradin – Ifremer / REM, N/O Atalante https://doi.org/10.17600/18001296
Operating parameters
- Measurement duration: 10 sec
- Sampling period: 60 minutes
Sensor metadata
- Type: Communication and Storage Front-end 2
- Provider: IFREMER
- Model: COSTOF2, Deep sea
Data management
- Real time data transmission: yes
- Data storage in the Communication and storage unit (COSTOF2): Full
Data
| File | Size | Format | Processing | Access | |
|---|---|---|---|---|---|
data | 248 Ko | CSV | Raw data |
