search DOI 10.17882/92537

Water column geochemistry data from REVOSIMA MAYOBS1 Cruise

The Mayotte volcanological and seismological monitoring network (REVOSIMA) was created in response to the sub-marine eruption that started in May 2018. Composed by IPGP, BRGM, IFREMER and CNRS, its main missions are:

  • 1) to observe and study volcanic phenomena through real-time volcano monitoring,
  • 2) to conduct research programs,
  • 3) to communicate, disseminate and inform authorities and civil society.

These real-time observations and research can contribute to the prevention, and mitigation of seismic and volcanic risks. The main objective is to collect geological, geophysical and geochemical data over long periods of time to improve the understanding and modeling of volcanic processes at active volcanoes, to allow the systematic elaboration of long-term multi-parameters databases available to the scientific community, and to inform the authorities in charge of civil protection of any change in the volcano activity and after periods of local and regionally felt earthquakes.

The MAYOBS campaigns are carried out to monitor the evolution of the seismic and volcanic phenomenon which has affected the island of Mayotte since May 2018. They are carried out as part of an action program financed by the Ministry of Research, the General Directorate of prevention and risks of the Ministry of Ecological and Inclusive Transition, with the support of the interministerial delegate for major risks overseas and in conjunction with the other ministries and institutes involved (IPGP, IPGS, BRGM, IFREMER). They focus on the region east of Mayotte. The bathymetric surveys carried out by SHOM in the volcano area also contribute to the MAYOBS project.

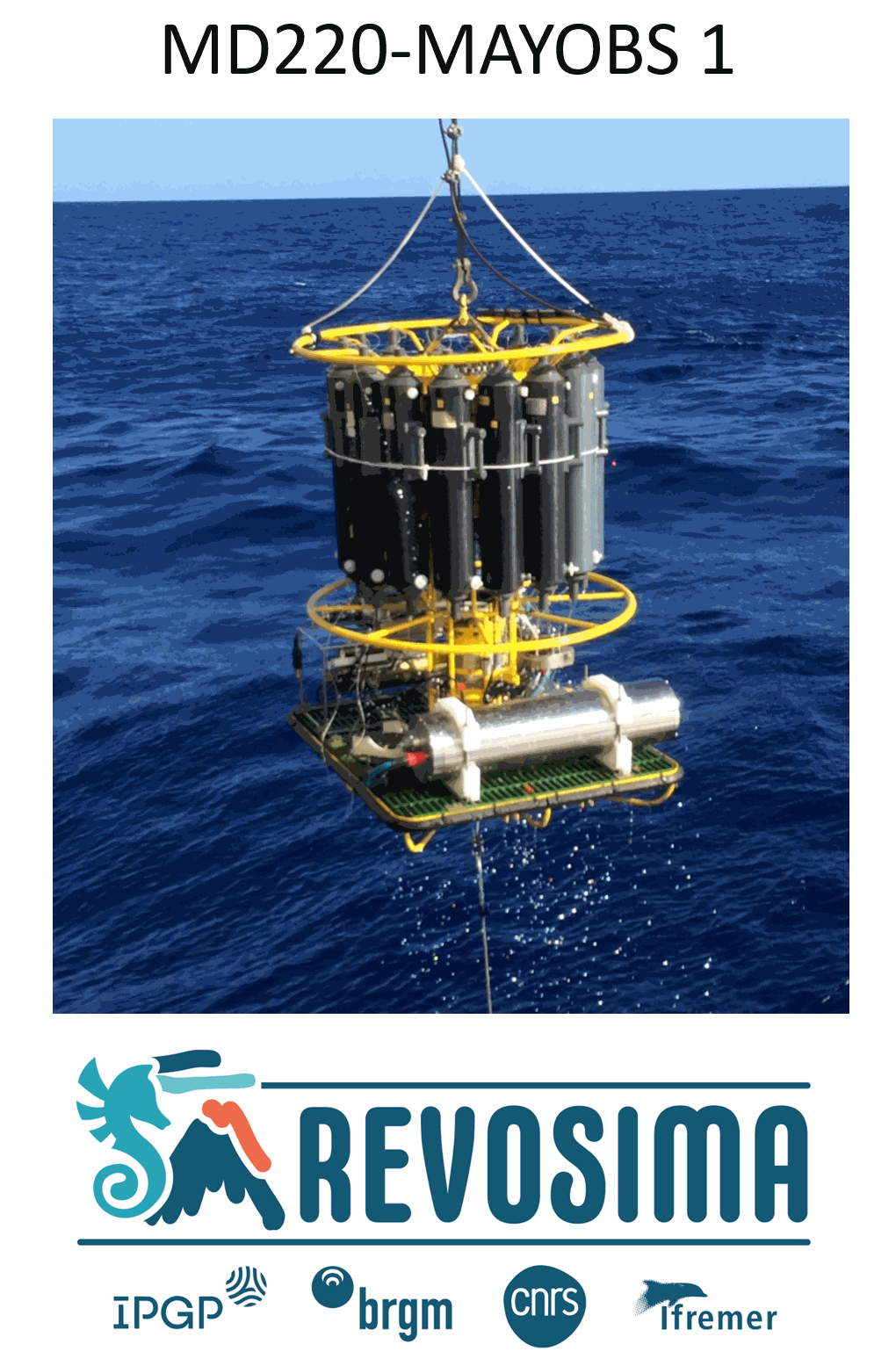

IFREMER carried out water column geochemistry measurements during MD220-MAYOBS cruise. In the present database, 5 stations were investigated between 15th and 17th May 2019 using in situ measurements embedded in a CTD-Rosette. Samples (max. 16 bottles per station) were anaylized onboard and onshore depending on the parameters. The quality controlled and process data are:

  • In situ: salinity (conductivity), temperature, depth, dissolved oxygen, turbidity
  • Onboard: pH, alkalinity, dissolved inorganic carbon
  • Onshore: dissolved CO2 CH4 H2, silicates

Disciplines

Chemical oceanography, Marine geology

Keywords

water column, geochemistry, Fani Maore, gas analysis, pH, O2, salinity, turbidity, temperature, CH4, CO2, Alkalinity, Silicate, H2

Location

-12.4N, -13.4S, 46.3E, 45.2W

Devices

In situ sensors Manufacturer Model Serial Number Unit Resolution
Deck Unit Sea-Bird SBE11Plus
CTD Sea-Bird SBE9Plus
Rosette Sea-Bird SBE32
Depth Sea-Bird SBE12   m 0.1
Temperature Sea-Bird SBE3 5555 °C 0.01
Salinity Sea-Bird SBE4 4031 psu 0.01
[O2] Aadera     µmol/kg 0.01
Turbidity NKE STBD 2.5 04 NTU 0.01



  Parameter Method Unit Limit of detection Resolution Bibliographic ref
Onboard pH Glass electrode     0.01
Onboard Alkalinity

Potentiometric titration

Titrino 848 Metrohm

 mmol/L   0.001
Onboard DIC

Potentiometric titration

Titrino 848 Metrohm

 mmol/L   0.001
Onshore [CO2] Head space / GC / HID µmol/L 0.05 0.1 (1)
Onshore [H2] Head space / GC / HID nmol/L 1.5 1 (1)
Onshore [CH4] Purge and trap / GC / FID nmol/L 0.03 0.1

(2), (3)
Onshore [Silicates] FIA Seal Analytical AA3 µmol/L   1

(1) Donval J.-P., Guyader V. (2017). Analysis of hydrogen and methane in seawater by “Headspace” method: Determination at trace level with an automatic headspace sampler. Talanta, 162, 408-414. https://doi.org/10.1016/j.talanta.2016.10.034

(2) Charlou J.-L., Fouquet Y., Bougault H., Donval J.-P., Etoubleau J., Jean-Baptiste P., Dapoigny A., Appriou P., Rona P.A.
Intense CH4 plumes generated by serpentinization of ultramafic rocks at the interaction of the 15°20′N fracture zone and the Mid-Atlantic Ridge. Geo. Cosmo. Act., 62 (1998), 2323-2333
(3) Donval J.-P., Charlou J.-L., Lucas L. Analysis of light hydrocarbons in marine sediments by headspace technique: Optimization using design of experiments. Chemometrics and Intelligent Laboratory Systems, 94 (2008), 89-94

Data

FileSizeFormatProcessingAccess
114638.xlsx
26 KoXLS, XLSXProcessed data
Download
How to cite
Rinnert Emmanuel, Donval Jean-Pierre, Guyader Vivien (2024). Water column geochemistry data from REVOSIMA MAYOBS1 Cruise. SEANOE. https://doi.org/10.17882/92537

Copy this text

Oceanographic cruises
MAYOBS1,
MAYOBS
Related documents
Verdurme Pauline, Gurioli Lucia, Chevrel Oryaëlle, Médard Etienne, Berthod Carole, Komorowski Jean-Christophe, Harris Andrew, Paquet Fabien, Cathalot Cecile, Feuillet Nathalie, Lebas Elodie, Rinnert Emmanuel, Donval Jean-Pierre, Thinon Isabelle, Deplus Christine, Bachèlery Patrick (2024). Magma ascent and lava flow field emplacement during the 2018–2021 Fani Maoré deep-submarine eruption insights from lava vesicle textures. Earth And Planetary Science Letters. 636. 118720 (14p.). https://doi.org/10.1016/j.epsl.2024.118720, https://archimer.ifremer.fr/doc/00889/100044/
Mastin Manon, Cathalot Cecile, Fandino Olivia, Giunta Thomas, Donval Jean-Pierre, Guyader Vivien, Germain Yoan, Scalabrin Carla, Dehez Sébastien, Jouenne Stéphane, Gaucher Eric C., Rouxel Olivier, Rinnert Emmanuel (2023). Strong geochemical anomalies following active submarine eruption offshore Mayotte. Chemical Geology. 640. 121739 (25p.). https://doi.org/10.1016/j.chemgeo.2023.121739, https://archimer.ifremer.fr/doc/00854/96593/
Bazin Sara, Royer Jean-Yves, Dubost Flavie, Paquet Fabien, Loubrieu Benoit, Lavayssiere Aude, Deplus Christine, Feuillet Nathalie, Jacques Eric, Rinnert Emmanuel, Thinon Isabelle, Lebas Elodie, Pierre Delphine, Retailleau Lise, Saurel Jean-Marie, Sukhovich Alexey, Bonnet Robin (2022). Initial results from a hydroacoustic network to monitor submarine lava flows near Mayotte Island = Premiers résultats d’un réseau hydroacoustique pour surveiller les coulées de lave sous-marines près de l’île de Mayotte. Comptes Rendus Geoscience. 354 (SI2). 257-273. https://doi.org/10.5802/crgeos.119, https://archimer.ifremer.fr/doc/00825/93691/
Berthod Carole, Komorowski Jean-Christophe, Gurioli Lucia, Médard Etienne, Bachèlery Patrick, Besson Pascale, Verdurme Pauline, Chevrel Oryaëlle, Di Muro Andrea, Peltier Aline, Devidal Jean-Luc, Nowak Sophie, Thinon Isabelle, Burckel Pierre, Hidalgo Samia, Deplus Christine, Loubrieu Benoit, Pierre Delphine, Bermell Sylvain, Pitel-Roudaut Mathilde, Réaud Yvan, Fouchard Sacha, Bickert Manon, Le Friant Anne, Paquet Fabien, Feuillet Nathalie, Jorry Stephan, Fouquet Yves, Rinnert Emmanuel, Cathalot Cecile, Lebas Elodie (2022). Temporal magmatic evolution of the Fani Maoré submarine eruption 50 km east of Mayotte revealed by in situ sampling and petrological monitoring. Comptes Rendus Geoscience. 354 (S2). 195-223. https://doi.org/10.5802/crgeos.155, https://archimer.ifremer.fr/doc/00810/92192/
Puzenat Valentine, Feuillet Nathalie, Komorowski Jean-Christophe, Escartín Javier, Deplus Christine, Bachèlery Patrick, Berthod Carole, Gurioli Lucia, Scalabrin Carla, Cathalot Cecile, Rinnert Emmanuel, Loubrieu Benoit, Pierre Delphine, Pitel-Roudaut Mathilde, Tanguy Nina, Fouquet Yves, Jorry Stephan, Lebas Elodie, Paquet Fabien, Thinon Isabelle (2022). Volcano-tectonic structures of Mayotte’s upper submarine slope: insights from high-resolution bathymetry and in-situ imagery from a deep-towed camera. Comptes Rendus Geoscience. 354 (S2). 81-104. https://doi.org/10.5802/crgeos.175, https://archimer.ifremer.fr/doc/00812/92432/
Saurel Jean-Marie, Jacques Eric, Aiken Chastity, Lemoine Anne, Retailleau Lise, Lavayssière Aude, Foix Oceane, Dofal Anthony, Laurent Angèle, Mercury Nicolas, Crawford Wayne, Lemarchand Arnaud, Daniel Romuald, Pelleau Pascal, de Berc Maxime Bès, Dectot Grégoire, Bertil Didier, Roullé Agathe, Broucke Céleste, Colombain Alison, Jund Hélène, Besançon Simon, Guyavarch Pierre, Kowalski Philippe, Roudaut Mickael, Apprioual Ronan, Battaglia Jean, Bodihar Soumya, Boissier Patrice, Bouin Marie Paule, Brunet Christophe, Canjamale Kévin, Catherine Philippe, Desfete Nicolas, Doubre Cécile, Dretzen Rémi, Dumouche Tom, Fernagu Philippe, Ferrazzini Valérie, Fontaine Fabrice, Gaillot Arnaud, Géli Louis, Griot Cyprien, Grunberg Marc, Guzel Emre Can, Hoste-Colomer Roser, Lambotte Sophie, Lauret Frédéric, Léger Félix, Maros Emmanuel, Peltier Aline, Vergne Jérôme, Satriano Claudio, Tronel Frédéric, van der Woerd Jérôme, Fouquet Yves, Jorry Stephan, Rinnert Emmanuel, Thinon Isabelle, Feuillet Nathalie (2022). Mayotte seismic crisis: building knowledge in near real-time by combining land and ocean-bottom seismometers, first results. Geophysical Journal International. 228 (2). 1281-1293. https://doi.org/10.1093/gji/ggab392, https://archimer.ifremer.fr/doc/00724/83604/
Feuillet Nathalie, Jorry Stephan, Crawford Wayne C., Deplus Christine, Thinon Isabelle, Jacques Eric, Saurel Jean Marie, Lemoine Anne, Paquet Fabien, Satriano Claudio, Aiken Chastity, Foix Oceane, Kowalski Philippe, Laurent Angèle, Rinnert Emmanuel, Cathalot Cecile, Donval Jean-Pierre, Guyader Vivien, Gaillot Arnaud, Scalabrin Carla, Moreira Manuel, Peltier Aline, Beauducel François, Grandin Raphaël, Ballu Valérie, Daniel Romuald, Pelleau Pascal, Gomez Jérémy, Besançon Simon, Geli Louis, Bernard Pascal, Bachelery Patrick, Fouquet Yves, Bertil Didier, Lemarchand Arnaud, van der Woerd Jérome (2021). Birth of a large volcanic edifice offshore Mayotte via lithosphere-scale dyke intrusion. Nature Geoscience. 14 (10). 787-795. https://doi.org/10.1038/s41561-021-00809-x, https://archimer.ifremer.fr/doc/00718/83007/
Foix Oceane, Aiken Chastity, Saurel Jean-Marie, Feuillet Nathalie, Jorry Stephan, Rinnert Emmanuel, Thinon Isabelle, Mayobs/revosima Seismology Team (2021). Offshore Mayotte volcanic plumbing revealed by local passive tomography. Journal Of Volcanology And Geothermal Research. 420. 107395 (14p.). https://doi.org/10.1016/j.jvolgeores.2021.107395, https://archimer.ifremer.fr/doc/00725/83680/
Related datasets
Rinnert Emmanuel, Donval Jean-Pierre, Guyader Vivien, Cathalot Cecile (2024). Water column geochemistry data from REVOSIMA MAYOBS4 Cruise. SEANOE. https://doi.org/10.17882/103047
Rinnert Emmanuel, Donval Jean-Pierre, Guyader Vivien, Cathalot Cecile, Mastin Manon (2024). Water column geochemistry data from REVOSIMA MAYOBS15 Cruise. SEANOE. https://doi.org/10.17882/103138
