(2019). CTD data from FAROFA surveys, 2017-09-05 to 2019-04-22. SEANOE. https://doi.org/10.17882/70647
Copy this text
CTD data from FAROFA surveys, 2017-09-05 to 2019-04-22

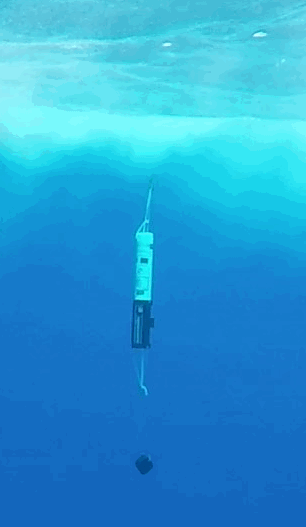

This dataset contains hydrographical profiles achieved around Fernando de Noronha Archipelago off northeast Brazil within the framework of Fish around Fernando de Noronha FAROFA surveys performed in sept 2017 (9 profiles), April 2018 (17 profiles) and April 2019 (12 profiles). CTD profiles were achieved using a RBR Concerto logger measuring depth, temperature, salinity and fluorescence. Deployment were made using a fishing rod and 1 kg ballast installed under the logger.
Disciplines
Biological oceanography
Keywords
BRAZIL, CTD
Location
-3.7N, -3.95S, -32.3E, -32.7W
Devices
Variables
| Standard name | Long name | Units |
|---|---|---|
| PROFILE | profiles list number | Integer |
| LATITUDE | latitude of each location | degrees_north |
| LONGITUDE | longitude of each location | degrees_east |
| BATH | bathymetric depth | meters |
| PRES | sea_water_pressure sea surface | decibar=10000 pascals |
| ETDD | ellapsed time | decimal days |
| TEMP | sea temperature | Celsius degree |
| PSAL | practical salinity scale 1978 | P.S.S.78 |
| DENS | density (sigma-theta) | Kg.m-³ |
| SVEL | sound velocity | Meters per second |
| FLU2 | fluorescence | Milligram.m-3 |
Sensor metadata
- data_type: OceanSITES profile data
- cycle_mesure: FAROFA
- plateforme_name: TUBARAO TIGRE
- timezone: GMT
- data_assembly_center: IRD
- type_instrument: RBRConcerto
- instrument_number: 66030
- date_update: 2019-11-14T18:16:40Z
- pi_name: Arnaud BERTRAND
- processing_state: 1A
- codification: OOPC
- Conventions: CF1.4, OceanSITES 1.1
- format_version: 1.2
- Netcdf_version: 3.6
Operating parameters
| Survey | Acquisition rate (sec) |
|---|---|
| FAROFA 1 | 11 |
| FAROFA 2 | 11 |
| FAROFA 3 | 1 |
Test and calibration
- Neotek, Temperature, Conductivity, Pressure, Fluorometer calibration (March 2017)
Data
| File | Size | Format | Processing | Access | |
|---|---|---|---|---|---|
Pressure calibration | 421 Ko | Raw data | |||
Temperature calibration | 412 Ko | Raw data | |||
Fluorometer calibration | 41 Ko | Raw data | |||
Conductivity calibration | 442 Ko | Raw data | |||
CTD profiles collected during FAROFA 1 survey | 31 Ko | NetCDF | Raw data | ||
CTD profiles collected during FAROFA 2 survey | 68 Ko | NetCDF | Raw data | ||
CTD profiles collected during FAROFA 3 survey | 256 Ko | NetCDF | Raw data |
How to cite
Bertrand Arnaud
Salvetat Julie
